RS-485 to Ethernet Media Convertersserial communication protocolsEthernet networksindustrial automation, SCADA, building management systems, and energy monitoringIn industrial and commercial communication systems, play a vital role in bridging the gap between legacy and modern . RS-485, known for its long-distance and noise-resistant communication, is still widely used in . However, most modern networks rely on Ethernet.

A media converter enables smooth integration between these two worlds. But when it comes to physical design and installation, two main models dominate the market:

DIN-Rail Models (industrial-grade, cabinet-mountable)
Desktop Models (portable, standalone)

form factor, durability, power options, and deployment scenariosWhile both serve the same function, their differ significantly. Choosing the right type ensures long-term reliability and cost efficiency.

What is an RS-485 to Ethernet Media Converter?

RS-485 to Ethernet Media Converterserial RS-485 signalsEthernet framesAn is a device that converts into and vice versa.

Functions:

Protocol Conversion – Converts legacy serial data to TCP/IP packets, enabling remote access.
Communication Extension – RS-485 has a maximum distance of ~1200 meters; Ethernet expands this reach globally.
Device Integration – Allows legacy PLCs, sensors, meters, and controllers to connect to modern SCADA or cloud systems.
Network FlexibilityTCP Server, TCP Client, and UDP – Supports different operating modes such as .

DIN-Rail Models: Features and Advantages

engineered for industrial control panelsruggedness and long-term reliabilityDIN-Rail-mounted converters are . Their design and specifications focus on .

Key Features

DIN-Rail Mounting (35mm Standard)

Fits directly into electrical enclosures and control cabinets.
Provides organized and compact installation with other industrial equipment.

Industrial-Grade Housing

Metal casing with dust, shock, and vibration resistance.
Ensures protection in factory and outdoor environments.

Wide Power Input Range (9–48V DC)

Compatible with industrial DC busbars.
Eliminates the need for multiple adapters.

Extended Operating Temperature (-40°C to 75°C)

Suitable for extreme conditions such as cold storage, mining, or outdoor substations.

High EMI/EMC Protection

Filters and shielding protect communication from electrical noise.
Crucial in factories with motors, relays, and heavy equipment.

Advantages

Space-Saving Installation

Slim design fits in panels where multiple converters are required.

Industrial Reliability

Built for 24/7 operation without downtime.

Scalability

Easily expandable for large networks with dozens of converters.

Centralized Power Supply

Uses industrial DC buses to simplify cabling and reduce clutter.

Typical Use Cases

Manufacturing plants (PLC integration)
Smart grids and substations (energy meters to Ethernet)
Building automation (HVAC, lighting, and security controllers)
Transportation systems (railway signaling, traffic control)

Desktop Models: Features and Advantages

portable, standalone deviceslight industrial, office, and lab environmentsDesktop RS-485 to Ethernet converters are mainly designed for .

Key Features

Standalone Plug-and-Play Design

Easy to deploy without mounting hardware.
Ideal for temporary setups or mobile test rigs.

External Power Adapter (5–12V DC)

Simple connection to AC power via adapter.
No need for specialized DC bus wiring.

Compact and Lightweight

Small form factor allows use on desks, shelves, or wall-mounted setups.

User-Friendly Interfaces

link, activity, and power statusTypically comes with LEDs for .
Supports web configuration for quick setup.

Advantages

Easy Setup

Just plug in, connect, and configure—no panel wiring needed.

Portable and Flexible

Can be relocated between labs, test stations, or offices.

Lower Cost

Affordable for smaller projects and R&D teams.

Simple Maintenance

Can be replaced or serviced quickly without downtime.

Typical Use Cases

Research and Development labs (testing RS-485 devices)
Office automation (connecting serial devices to IP networks)
Prototyping (quickly testing concepts before scaling)
Small businesses (energy monitoring, security access control)

DIN-Rail vs Desktop Models: Detailed Comparison

Factor	DIN-Rail Model	Desktop Model
Installation	Mounted in industrial control panels with DIN-Rail brackets	Placed on desk, shelf, or wall-mounted
Durability	Rugged metal housing, designed for harsh environments	Light to medium durability, office/lab use
Power Supply	9–48V DC, integrates with industrial power buses	External AC/DC adapter (5–12V)
Temperature Range	-40°C to 75°C (industrial grade)	0°C to 50°C (standard environments)
Noise & EMI Protection	Advanced shielding, high resistance to interference	Basic shielding, less resistant
Cost	Higher, premium for industrial-grade reliability	Lower, cost-effective for small projects
Best Deployment	Factories, energy, transport, building automation	Labs, offices, prototyping, small systems

How to Choose the Right Model

RS-485 to Ethernet Media ConverterWhen selecting the right , consider these factors in detail:

Operating Environment

DIN-RailIf your system is exposed to dust, high/low temperatures, and electrical noise →
DesktopIf deployed in controlled environments like labs or offices →

Deployment Scale

DIN-RailFor large-scale industrial networks with multiple converters →
DesktopFor small-scale or proof-of-concept setups →

Budget Constraints

Desktop modelTight budget → for initial deployment.
DIN-Rail modelLong-term investment with low downtime → .

Power Availability

industrial DC buses (24V, 48V)DIN-RailIf your site has → .
AC socketsDesktopIf only are available → .

Mobility Needs

DIN-RailStationary, cabinet-integrated setups → .
DesktopPortable, frequently moved setups → .

Conclusion

DIN-RailDesktop RS-485 to Ethernet Media Converterscore functionalityenvironment, scalability, and durability requirementsBoth and are designed to serve different purposes. While their remains the same, the right choice depends on the .

DIN-Rail modelsindustrial-grade reliabilityChoose if you need , ruggedness, and cabinet integration.
Desktop modelsflexibility, portability, and cost-effectivenessChoose if you need for small or temporary setups.

use case, power supply, budget, and deployment environmentseamless communication between RS-485 devices and Ethernet networksBy carefully evaluating your , you can select the converter that ensures for years to come.

FAQs

1. Can I install a desktop model inside a control cabinet?

Yes, but it won’t mount neatly on a DIN-Rail, and durability may be compromised in harsh environments.

2. Do both models support TCP and UDP modes?

Most modern converters support both TCP and UDP in client and server configurations, regardless of form factor.

3. Which model lasts longer in continuous operation?

24/7 industrial operationDIN-Rail models are designed for , while desktop models are suitable for moderate-duty use.

4. Can I connect multiple RS-485 devices to one converter?

multi-drop RS-485 networkingYes, if the converter supports . DIN-Rail models often handle larger loads.

5. Is there a big price difference between DIN-Rail and desktop converters?

Yes, DIN-Rail models are more expensive due to rugged build, wider power support, and industrial certifications.

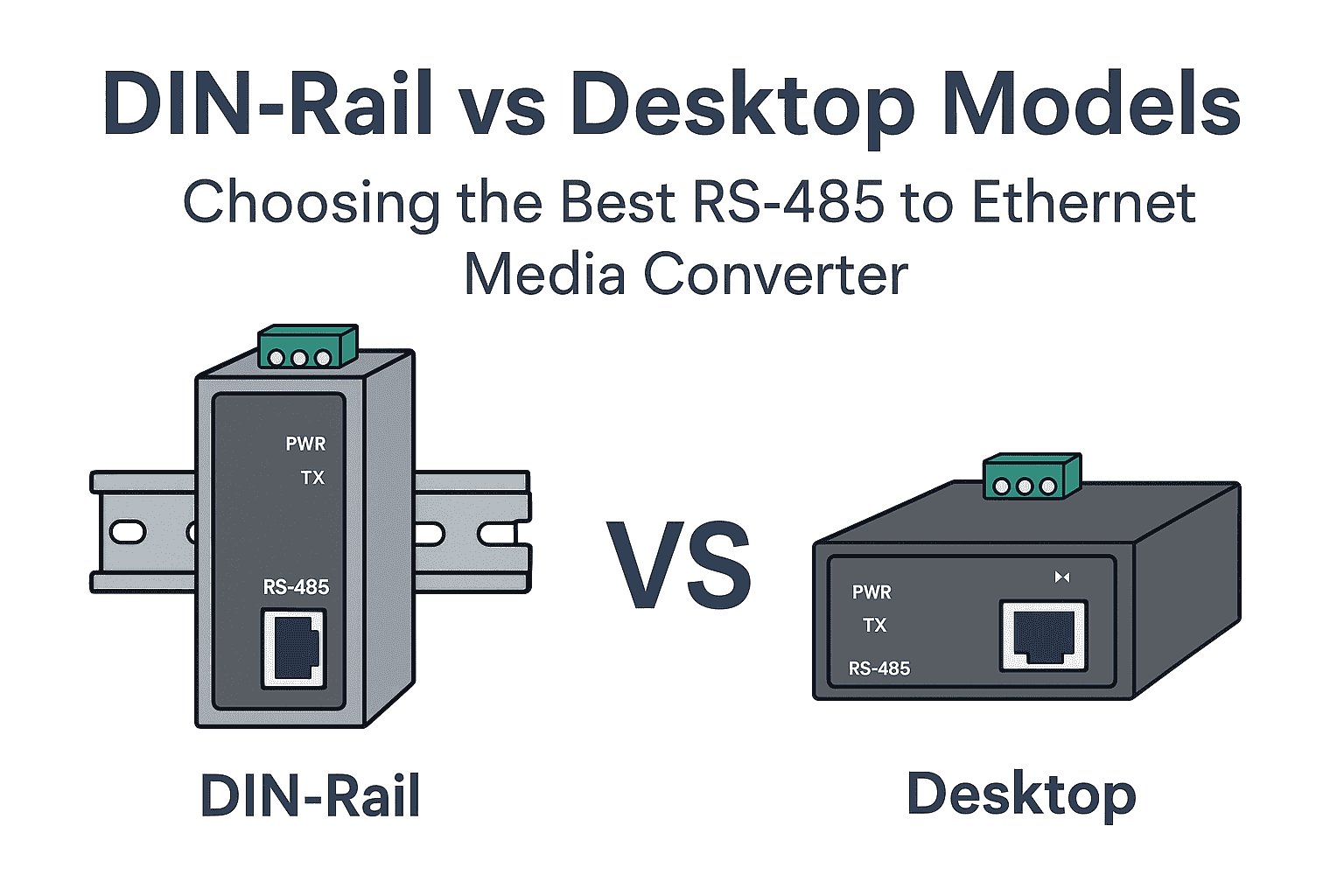

DIN-Rail vs Desktop Models: Choosing the Best RS-485 to Ethernet Media Converter
